Make the most of your flat panel experience by installing it
truly flat against the wall with PeerlessÕ IM740 In-wall Articulating
Arm. Installation is quick and easy thanks to the mounts self-locating
tabs that center the in-wall box snugly between standard 16" wood
stud centers. View the flat panel screen in its no-profile home
position, or extend the arm over 16" to watch it virtually anywhere else
within the room. This mount holds screens so flat against the wall, it
may even allow installations to meet ADA requirements.

Features:

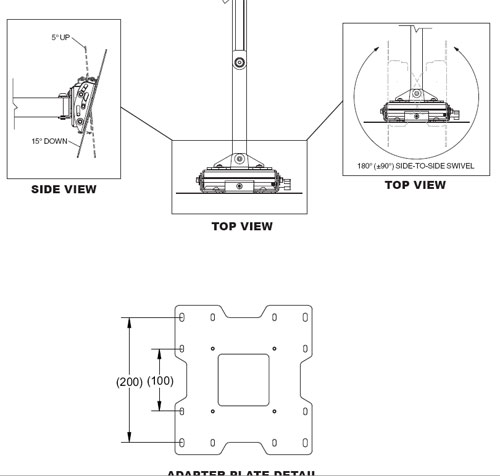

• Compatible with screens that have VESA¨ 100 / 200x100 / 200x200mm mounting hole patterns

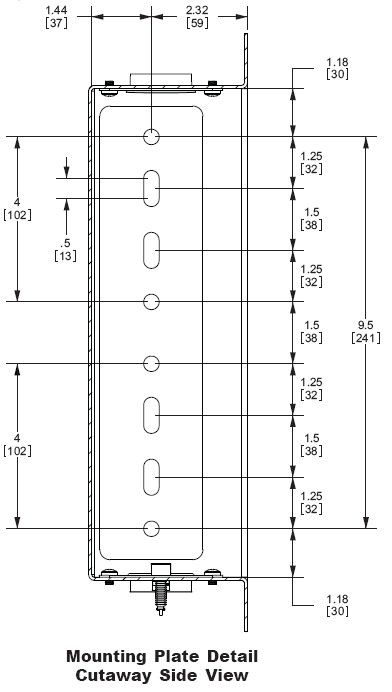

• Three height adjustment points in box set screen to set screen in desired vertical position
• Installs between 16" centers
• Stud-locating tabs adjust 1/4" left or right to accommodate stud spacing
• Includes SA740P mount for up to 40" screens
• Removable gang box and cable management access plates make installation easy

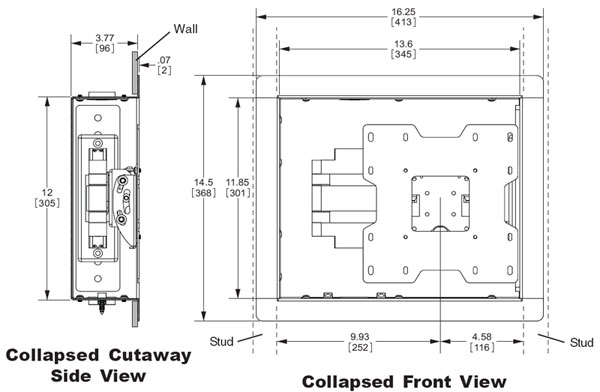

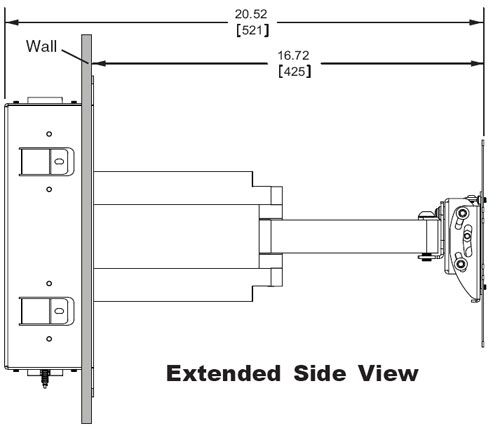

Dimensions: (W x H x D) IM740P(-S): 16.25" x 14.5" x 3.85"-20.52" (41.2 x 36.8 x 9.8-52.12 cm)

Load Capacity: 80 lb (36.3 kg)

PRODUCT WEIGHT: IM740P(-S): 18.3 lb (8.3 kg)

FINISH: Scratch-resistant fused epoxy

AVAILABLE COLORS: IM740P: High gloss black
ÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊÊ IM740P-S: High gloss silver

Ê
