Arrow  Full Motion Articulating Wall Mount for 37 to 60 Inch Plasma/LED/LCD TVs AM-P17S

Swing Angle -45¡-+45¡ Tilt Angle -7¡(up)-+8¡(down) Max Load 60kgs/132 lbs

Features

• Dual Cantilever Arms offer adjustable tilt, pan, swivel, & extend for perfect screen positioning every time.
• Chrome Plated finishing Parts and Knobs

• Universal mounting pattern fits virtually any screen from 37 to 60 inch.
• Maximum Horizontal hole separation: 31.6 inch
• Maximum  Vertical hole separation: 19.9 inch
• Designed for Wall studs of 16 inch

• Max weight loading up to 132 lbs.
• Lift-and-hook design for easy installation.
• Low Profile Design: Folds flat against the wall with a distance of 12.7cm (5.00")
• Distance from the wall: 12.7cm - 40.6cm ( 5.00"-17.0" including vertical brackets)
• Integrated bubble leveler
• Cable Management
• Security lockable for added security and theft prevention
• Installation guide included
• Hardware set to fit most TV included
• Manufacturer Warranty: 1 Year
• Brand New

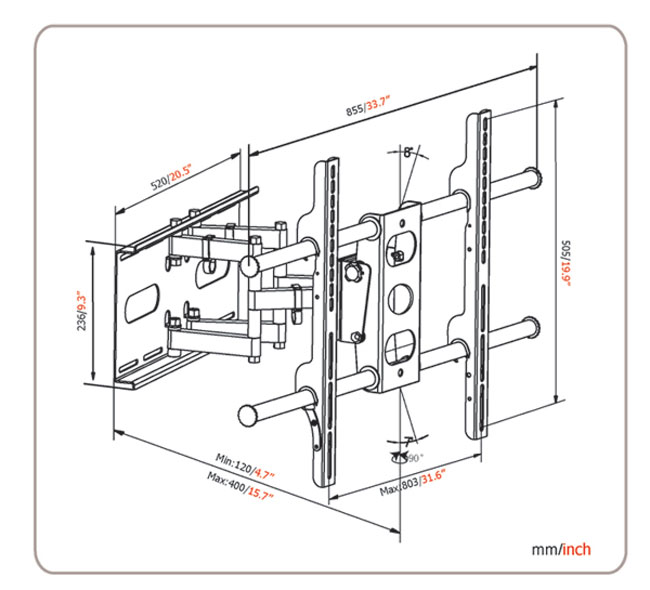

Specification

• Supported TV Size: 37" to 60"
• Swing/Rotation Angle: -45˚ ~ +45˚
• Tilt Angle: 7˚ (up) ~ 8˚ (down)˚
• Pivot Points: N/A
• Material: STEEL
• Max Load (Kg/Lbs): 60kgs/132 lbs
• Horizontal Mounting Patterns Supported: (max) 800mm/32inch (min) 255mm/ 10inch
• Vertical Mounting Patterns Supported: (max) 500mm/20inch (min) 75mm/3inch
